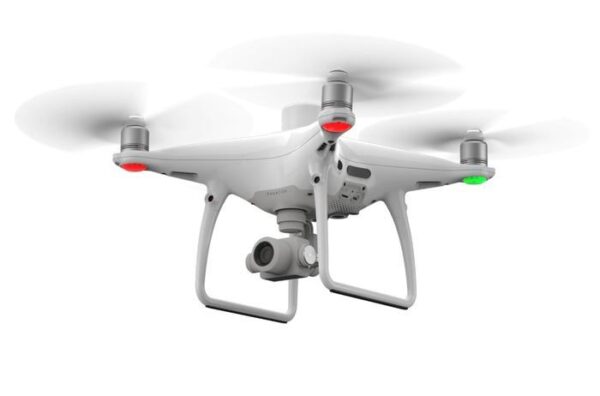

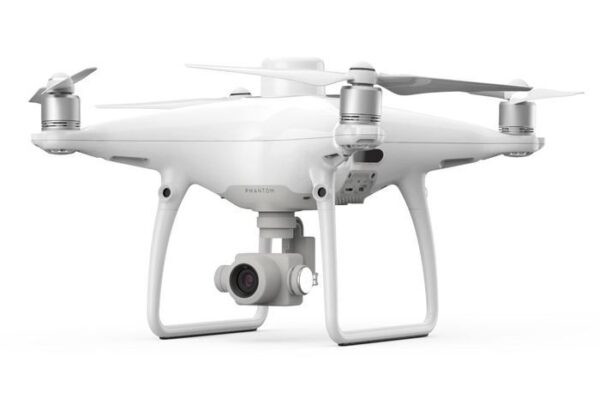

DJI Phantom 4 RTK (EU)

Kataloški broj: DJI-P4RTK

Garancija
Plaćanje karticom
Dostava
Pakiranje

12,299.00 KM

  • Upgrade your next mapping mission with the Phantom 4 RTK – DJI's most compact and accurate low altitude mapping solution.

Dostupno na upit

Opis

Takeoff Weight :
  • 1391 g
Diagonal Distance :
  • 350 mm
Max Service Ceiling Above Sea Level :
  • 19685 ft (6000 m)
Max Ascent Speed :
  • 6 m/s (automatic flight); 5 m/s (manual control)
Max Descent Speed :
  • 3 m/s
Max Speed :
  • 31 mph (50 kph)(P-mode)
  • 36 mph (58 kph)(A-mode)
Max Flight Time :
  • Approx. 30 minutes
Operating Temperature Range :
  • 32° to 104° F (0° to 40℃)
Operating Frequency :
  • 2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
  • 5.725 GHz to 5.850 GHz (United States, China)
Transmission Power (EIRP) :
  • 2.4 GHz
  • CE (Europe) / MIC (Japan) / KCC (Korea) ：< 20 dBm
  • 5.8 GHz
  • SRRC（China） / FCC（United States）/NCC(Taiwan,China)：< 26 dBm
Hover Accuracy Range :
  • RTK enabled and functioning properly：
  • Vertical：±0.1 m；Horizontal：±0.1 m
  • RTK disabled
  • Vertical：±0.1 m（with vision positioning ）； ±0.5 m（with GNSS positioning）
  • Horizontal：±0.3 m（with vision positioning）; ±1.5 m（with GNSS positioning）
Image Position Offset :
  • The position of the camera center is relative to the phase center of the onboard D-RTK antenna under the aircraft body's axis:(36, 0, and 192 mm) already applied to the image coordinates in Exif data. The positive x, y, and z axes of the aircraft body point to the forward, rightward, and downward of the aircraft, respectively.
Mapping Accuracy ** :
  • Mapping accuracy meets the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class Ⅲ ** The actual accuracy depends on surrounding lighting and patterns, aircraft altitude, mapping software used, and other factors when shooting.
Ground Sample Distance(GSD) :
  • H/36.5) cm/pixel， H means the aircraft altitude relative to shooting scene (unit: m)
Data Acquisition Efficiency :
  • Max operating area of approx. 1 km² for a single flight(at an altitude of 182 m, i.e., GSD is approx. 5 cm/pixel, meeting the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class Ⅲ
Velocity Range :
  • ≤31 mph(50 kph) at 6.6 ft(2 m) above ground with adequate lighting
Altitude Range :
  • 0-33 ft(0 - 10 m)
Operating Range :
  • 0-33 ft(0 - 10 m)
Obstacle Sensing Range :
  • 2-98 ft(0.7-30 m)
FOV :
  • Forward/Rear: 60° (horizontal), ±27° (vertical)
  • Downward: 70° (front and rear), 50° (left and right)
Measuring Frequency :
  • Forward/Rear：10 Hz
  • Downward： 20 Hz
Operating Environment :
  • Surfaces with clear patterns and adequate lighting(＞ 15 lux)
Sensor :
  • 1
Lens :
  • FOV 84°；8.8 mm / 24 mm(35 mm format equivalent:24 mm)；
  • f/2.8 - f/11, auto focus at 1 m - ∞
ISO Range :
  • Video:100-3200(Auto)
  • 100-6400(Manual)
  • Photo:100-3200(Auto)
  • 100-12800(Manual)
Mechanical Shutter Speed :
  • 8 - 1/2000 s
Electronic Shutter Speed :
  • 8 - 1/8000 s
Max Image Size :
  • 4864×3648（4:3
  • 5472×3648（3:2
Video Recording Modes :
  • H.264，4K：3840×2160 30p
Photo Format :
  • JPEG
Video Format :
  • MOV
Supported File Systems :
  • FAT32（≤ 32 GB）
  • exFAT（> 32 GB
Supported SD Cards :
  • MicroSD, Max Capacity: 128 GB. Class 10 or UHS-1 rating required Write speed≥15 MB/s
Operating Temperature Range :
  • 32° to 104° F （0° to 40℃）
Capacity :
  • 5870 mAh
Voltage :
  • 15.2 V
Battery Type :
  • LiPo 4S
Energy :
  • 89.2 Wh
Net Weight :
  • 468 g
Charging Temperature Range :
  • 14° to 104℉(-10° to 40℃)
Max charging Power :
  • 160 W
Input Voltage :
  • 17.3 - 26.2 V
Output Voltage and Current :
  • 8.7 V，6 A；5 V，2 A
Operating Temperature :
  • 41° to 104℉(5° to 40℃)
Single-Frequency, High-Sensitivity GNSS Module :
  • GPS+BeiDou+Galileo（Asia)；
  • GPS+GLONASS+Galileo（other regions）
Multi-Frequency Multi-System High-Precision RTK GNSS :
  • Frequency Used：
  • GPS：L1/L2；
  • GLONASS：L1/L2；
  • BeiDou：B1/B2；
  • Galileo：E1/E5a
  • Array
  • First-Fixed Time：< 50 s
  • Array
  • Positioning Accuracy: Vertical 1.5 cm + 1 ppm（RMS）；
  • Horizontal 1 cm + 1 ppm（RMS）
Stabilization :
  • 3-axis (tilt, roll, yaw)
Pitch :
  • -90° to +30°
Max Controllable Angular Speed :
  • 90°/s
Angular Vibration Range :
  • ±0.02°
Obstacle Sensing Range :
  • 0.6-23 ft(0.2 - 7 m)
FOV :
  • 70°(Horizontal)
  • ±10°(Vertical)
Measuring Frequency :
  • 10 Hz
Operating Environment :
  • Surface with diffuse reflection material, and reflectivity＞ 8%（such as wall,trees, humans, etc.)
Operating Frequency :
  • 2.400 GHz-2.483 GHz(Europe,Japan,Korea)
  • 5.725 GHz-5.850 GHz(United States, China)
Transmission Power (EIRP) :
  • 2.4 GHz
  • CE / MIC / KCC：< 20 dBm
  • 5.8 GHz
  • SRRC / FCC：< 26 dBm
Max Transmission Distance :
  • FCC：4.3 mi(7 km)；
  • SRRC / CE / MIC / KCC：3.1 mi(5 km) (Unobstrcted, free of interference)
Power Consumption :
  • 16 W(typical value)
Display :
  • 5.5 inch screen, 1920×1080, 1000 cd/m², Android System Memory 4G RAM+16G ROM
Operating Temperature Range :
  • 32° to 104° F （0° to 40℃）
Voltage :
  • 17.5 V
Operating Temperature Range :
  • 41° to 104℉(5° to 40℃)
Capacity :
  • 4920 mAh
Voltage :
  • 7.6 V
Battery Type :
  • LiPo 2S
Energy :
  • 37.39 Wh
Operating Temperature :
  • -4° to 104℉(-20° to 40℃)
Voltage :
  • 17.4 V
Rated Power :
  • 160 W
